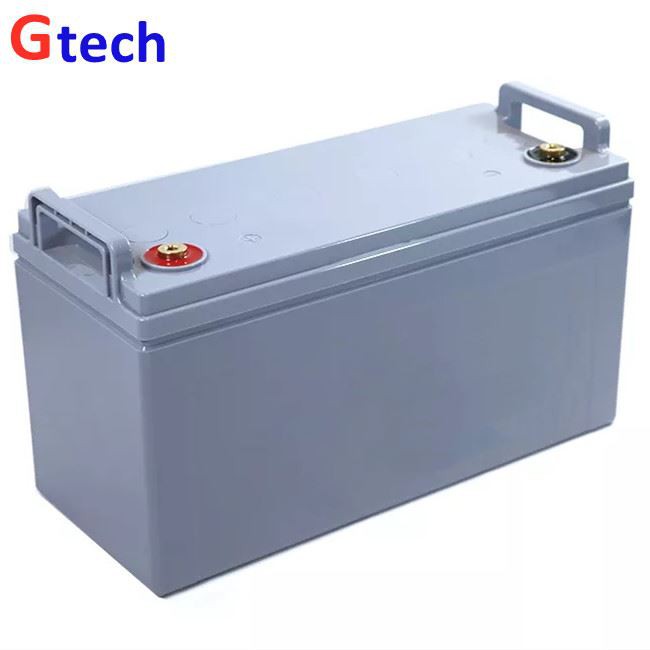

12V 7Ah-200Ah UPS Battery Replacement
Features
The GTH is a high rate series designed for heavy load emission applications with a design life of 8 to 15 years.
Using strong power grids and specially designed active materials, so providing stable performance under high current discharge requirements.
The GTH series provides 30% more power output than the standard range, and therefore applies to UPS / EPS data centers that require high current loads.
Applications
Parameters
Model No. | Rated Voltage (V) | Rated Capacity (AH) | Dimensions(MM) | Weight (KG) | Terminal Type | |||
length | Width | Height | Total Height | |||||
GT12-7H | 12 | 7 | 151 | 65 | 94 | 99 | 2.02 | T1/T2 |
GT12-7.2H | 12 | 7.2 | 151 | 65 | 94 | 99 | 2.09 | T1/T2 |
GT12-7.5H | 12 | 7.5 | 151 | 65 | 94 | 99 | 2.2 | T1/T2 |
GT12-8H | 12 | 8 | 151 | 65 | 94 | 99 | 2.3 | T2 |
GT12-8.5H | 12 | 8.5 | 151 | 65 | 94 | 99 | 2.45 | T2 |
GT12-9H | 12 | 9 | 151 | 65 | 94 | 120 | 2.55 | T2 |
GT12-10H | 12 | 10 | 151 | 98 | 95 | 101 | 3.3 | T2 |
GT12-12H | 12 | 12 | 151 | 98 | 95 | 101 | 3.5 | T2 |
GT12-16H | 12 | 16 | 181 | 77 | 167 | 167 | 4.6 | T10 |
GT12-18H | 12 | 18 | 181 | 77 | 167 | 167 | 4.85 | T10 |
GT12-20H | 12 | 18 | 181 | 77 | 167 | 167 | 5.4 | T10 |
GT12-24H | 12 | 24 | 175 | 166 | 125 | 125 | 7.4 | T10 |
GT12-28H | 12 | 28 | 175 | 166 | 125 | 125 | 8.1 | T10 |
GT12-33H | 12 | 33 | 195 | 130 | 155 | 180 | 9.8 | T11 |
GT12-35H | 12 | 35 | 195 | 130 | 155 | 180 | 10.2 | T11 |
GT12-40H | 12 | 40 | 197 | 165 | 170 | 170 | 11.5 | T11 |
GT12-45H | 12 | 45 | 197 | 165 | 170 | 170 | 12 | T11 |
GT12-55H | 12 | 55 | 229 | 138 | 210 | 228 | 15 | T12 |
GT12-65H | 12 | 65 | 355 | 167 | 179 | 183 | 17.5 | T12 |
GT12-70H | 12 | 70 | 258 | 166 | 210 | 228 | 19 | T12 |
GT12-80H | 12 | 80 | 258 | 166 | 210 | 228 | 20 | T12 |
GT12-85H | 12 | 85 | 330 | 171 | 220 | 227 | 24.5 | T12 |
GT12-90H | 12 | 90 | 330 | 171 | 220 | 227 | 27 | T12 |
GT12-100H | 12 | 100 | 330 | 171 | 220 | 227 | 28 | T12 |
GT12-110H | 12 | 110 | 330 | 171 | 220 | 227 | 30.5 | T12 |
GT12-120H | 12 | 120 | 410 | 175 | 227 | 227 | 32 | T13 |
GT12-150H | 12 | 150 | 485 | 172 | 240 | 240 | 40.5 | T13 |
GT12-200H | 12 | 200 | 522 | 238 | 218 | 236 | 55.5 | T13 |
G-TECH ENERGY Advantage
PROFESSIONAL
19 years of industry experience, providing more professional technical support.
QUALITY
Grade A materials, state-of-the art-technology;
Strictly control each step of QC & QA system processes; 3 years warranty period(Excluding part of battery).
SOLUTION
Provide green power solutions;
Provide IT data center infrastructure construction, including power quality and physical environment cooling solutions.
SUPPORT
Provide on-site implementation services;
Provide product spare parts services.
FAQ
Q: How to proceed with an order?
A: Step 1, let us know your detailed requirements of the battery such as voltage, capacity, discharge current and application;
Step 2, we will quote according to your detailed requirements;
Step 3, pls confirm the prices and samples;
Step 4, pls place a formal order including detailed QTY and product requirements;
Step 5, we provide the proforma invoice according to your order and you pay 30% deposit of the order then we will arrange the production;
Step 6, when the goods are ready, we will inform you to finish the balance payment of the order and we will arrange shipment of the goods when the payment is confirmed.
Q: What is your payment term?
A: T/T,Western Union,MoneyGram,and Paypal.This is negotiable.
Q: Why choose us?
A: We keep good quality and competitive price to ensure our customers benefit ;
We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
Q: Is it OK to print my logo on the product？
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample
