Gtech MPS Series Off-grid Solar Inverter efficiently converts power, supports various battery types, and features solar charging, automatic restart, and overload protection.
Description:
Gtech MPS Series solar inverter with MPPT pure sine wave, steady performance and good battery compatibility
MPS series is low frequency off-grid solar inverter. Selectable Inverter mode and UPS mode for home appliances and personal computers. This power inverter supports solar charging current from 10A to 60A. Support up to 8 types battery inclusive LiFePO4/ Lead-acid battery. Built-in smart BMS system for better battery performance. Provide OEM&ODM Service with flexible MOQ.
Features:
- Integrated control unit for pure sine wave low-frequency solar inverter and MPPT solar charger
- Selectable battery types: Lithium-iron Phosphate (LiFePO4), AGM, Gel, Sealed Lead-acid, Gel EURO, Open lead acid, Calcium, Desulphation
- Cold start function, USB, and RS232 monitoring capabilities
- Compatible with mains voltage or generator output
- Selectable INV MODE range: 165-265±5Vac; UPS MODE: 180-265±5Vac, suitable for home appliances and personal computers
- Selectable high-power AC charging current options: 5A, 10A, 20A, 30A, 45A, 60A
- Selectable solar charging current options: 10A to 60A
- Configurable AC/Solar input priority via LCD settings
- Adjustable battery shutdown voltage
- Adjustable battery voltage priority from solar to AC
- Automatic restart when AC power is restored
- Overload and short circuit protection
- Smart battery charger design for optimized battery performance
Product specifications:
| Model | MPS2012MPS3024MPS3048 | MPS4048MPS6048 | MPS8048MPS12048 | |
| Real Power | 2000W3000W | 4000W6000W | 8000W12000W | |
| Display | ||||
| Indicator panel | LCD display | |||
| ACMode | ||||
| Input Voltage(INV.mode) | 160-265±5Vac 160-265±5Vac 180-265±5Vac 296%(ACMode |
|||
| Input Voltage(UPS mode) | 180-265±5Vac | |||
| Input frequency | 45-65Hz | |||
| Output Voltage(INV.mode) | 160-265±5Vac 160-265±5Vac 180-265±5Vac 296%(ACMode |
|||
| Output Voltage(UPS mode) | 180-265±5Vac | |||
| Eficiency | 96%(AC Mode) | |||
| Inverter Mode | ||||
| THD Output voltage |
<3%(linear load) 230Vac 50±0.1Hz/60±0.1Hz(Auto sensing) Pure Sina Wave <10ms(Typical) 280%(BATTERY Mode) |
|||
| 230Vac | ||||
| Output frequency | 50±0.1Hz/60±0.1Hz(Auto sensing) | |||
| Output wave form | Pure Sina Wave | |||
| Transfer time | <10ms(Typical) | |||
| Effciency | 80%(BATTERY Mode) | |||
| Overload capability | (100%(120%(140% | |||
| Overcurrent protection | System shuts down automatically within 20ms | |||
| Output short circuit protection | Yes | |||
| Battery | ||||
| DC voltage | DC 12VDC 24V | DC48V | ||
| Battery type | 8 types of battery | |||
| AC charging current | 5A10A20A30A45A(60A)Max | |||
| Solar charging current(MPPT) | 60A Max | 100A Max | ||
| MPPT Tracking Voltage Range | DC18V-DC150VD34V-DC150V | DC65V-DC150V | ||
| Maximum PV Input Voltage | DC 170V | |||
| Dimension(mm) | 480(L)*286(W)*251(H) | |||
| Net weight(kg) | 24.92929 | 2935 | 6080 | |
| Environment | ||||
| Environment | Temperature 0℃-40℃,Humidity 20%-90% | |||
| Noise level | ≤40dB(1m) | |||
| Altitude | s1000 m, Altitude exceeds 1000m, full power cannot reach | |||
System Connection:

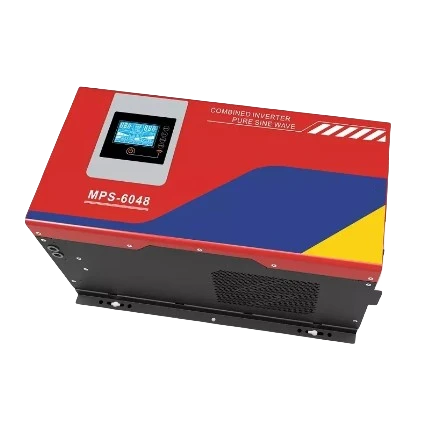

Product photo:
Why Choose Us:
ISO9001, ISO 14001, ISO45001 accredited factory
Professional sales, R&D team and qualified workers
Fast response, timely delivery, reliable products and Factory direct price
Strict quality control from IQC, assembly, process and electric performance tests
Our batteries certified with UN 38.3, UL, CE, IEC, CTL, ROHS, Golden Sun authentication
Flexible OEM/ODM policy
